Jenn-Air 30'' Gas Downdraft Cooktop with Grill and Two Burners

| Sears Exclusive. | Sears Item# 02221789000 | Model# JGD8130ADB
Close

Create a Review

Seller Rating:

(based on ratings)

Sold by Sears

Additional colors
  • Choose Color

At a Glance

Specifications

Special Offers

  • This is a Special Order item
  • CALL NOW for Pricing and Availability: 1-800-829-5854

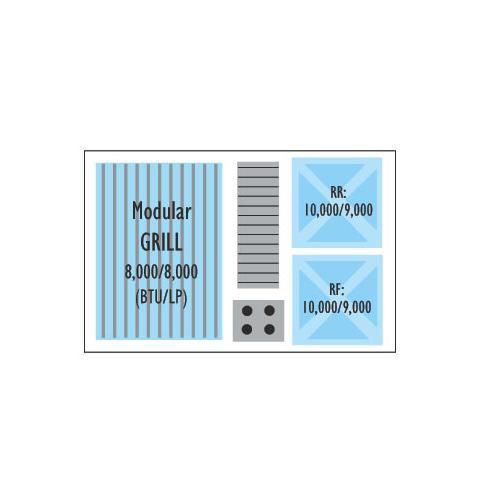

Gas cooktop with [HA_DowndraftVentilation] features two sealed gas burners and a grill assembly with the Jenn-Air® E-ven Heat™ burner. Grill can be replaced with an optional 2-burner module for 4-burner cooking.

Read full description...

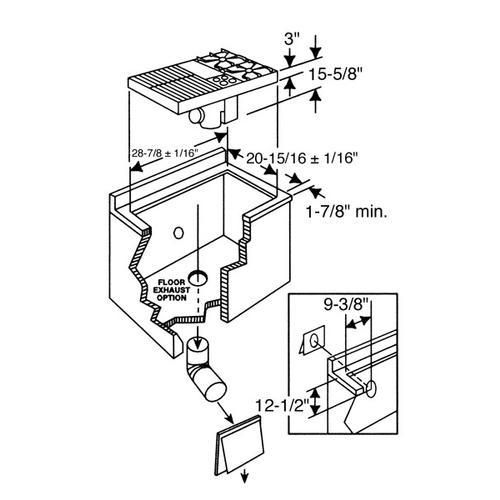

Dimensions
Cutout Dimensions: 29 x 21
Depth (In.): 21.75
Height (In.): 13.812
Item Weight (lbs.): 76
Minimum Clearance Above Cooktop (in.): 30
Minimum Clearance Below Cooktop (in.): 13.81
Minimum Clearance to Front of Counter (in.): 1.87
Minimum Clearance to Left Wall (in.): 8

View all specifications...

View More Offers
Support
Availability & Rewards

Specifications & Dimensions

Dimensions
Cutout Dimensions: 29 x 21
Depth (In.): 21.75
Height (In.): 13.812
Item Weight (lbs.): 76
Minimum Clearance Above Cooktop (in.): 30
Minimum Clearance Below Cooktop (in.): 13.81
Minimum Clearance to Front of Counter (in.): 1.87
Minimum Clearance to Left Wall (in.): 8
Minimum Clearance to Rear Wall (in.): 0.93
Minimum Clearance to Right Wall (in.): 8
Width (in.): 30
Product Overview:
Appliance Brand: Jenn-Air
Color:
Color Family: Black
Color Matching Controls: Yes
Styling & Design:
Cooking Bay Style: Modular Bays
Cooking Surface: Gas: sealed burners
Surface: Porcelain enamel
Power Source:
Gas or Electric: Gas
Warranty:
General Warranty: 2 years parts, 1 year labor
Certifications
ADA Compliant: No
General Configuration
Burner Configuration: All-purpose
Installable Over Oven: Cannot install over oven
Venting System: Yes
Controls and Features
Cooking Zones: Convertible (1 fixed + 1 or more bays for modules)
Cooktop Control Location: Front
Number of Elements/Burners: 4
Safety/In-Use Indicator: ON indicator(s)

Overview

Ratings & Reviews

Guides & Policies

Product Description

  • This is a Special Order item
  • CALL NOW for Pricing and Availability: 1-800-829-5854
Gas cooktop with [HA_DowndraftVentilation] features two sealed gas burners and a grill assembly with the Jenn-Air® E-ven Heat™ burner. Grill can be replaced with an optional 2-burner module for 4-burner cooking.

  • Downdraft ventilation captures smoke/steam/odors at the cooking surface and pulls them out
  • Modular design lets you change the cooking surface for the ultimate cooking flexibility
  • Grill assembly with nonstick grates lets you grill indoors and accepts a griddle accessory
  • E-ven Heat™ grill burner provides even heat across the entire grilling surface
  • One-piece sealed burners keep spills on the surface making cleanup easier
  • Accepts optional two-burner module in place of grill
  • Applicable Jenn-Air cooking surface module (cartridge) on Sears.com: Sears Item # 02282719000

Added on October 21, 2010



Customer Ratings And Reviews

Video Reviews

Do you own this product?


Product Rating:

    Written Reviews

    Overall Rating

    (1 reviews)

    0 of 1 (0%) customers would recommend this product to a friend.

    Write a review for a chance to win a $1,000 gift card each month!See Official Rules

    Note: Some reviewers may have received a benefit, like a sweepstakes entry or rewards program points, in exchange for writing this review. The benefits were not conditioned on the positive or negative content of the review.


    See only reviews with...

    See all reviews for this product

    Product Reviews

    Profile Avatar an appliance snob
    brand conscious
    budget conscious

    Internet description was wrong, service was poor, parts missing September 20, 2011
    via sears_dot_com
    By Xelapaul of Spring, TX
    See all of this author's reviews

    Ordered from Internet, went to Sears to pick it up and instead of a scratch, the whole cooktop was smashed and unusable. Found another one but the downdraft screen was missing, the assistance manager promissed to order it and ship it directly to my house.....I am still waiting...it's been almost a month.
