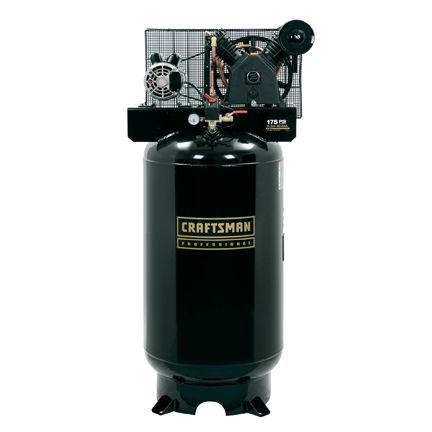

Craftsman Professional 80 Gal. Vertical Air Compressor, 5.4 hp

Sears Item# 00916781000 | Model# 16781
Close

Create a Review

This item is temporarily unavailable.To find a similar item, scroll down or enter a term in the search box above.

At a Glance

Specifications

Special Offers

This 80 gallon Craftsman Professional stationary air compressor with 2-stage pump is designed for dedicated workshop use. Its 2-stage oil-lube belt drive cast-iron pump offers excellent long-term durability. Low RPM belt-drive design is much quieter than direct drive designs. 14.1 SCFM @90PSI combined with a 80 gallon tank size and 175 PSI Max Tank Pressure provide the air flow necessary to reliably power multiple air tools and continuous use air tools like sanders and grinders. Runs on 230 Volts and should only be installed by a professional licensed electrician.

Read full description...

Product Overview:
Item Weight (lbs.): 415.0 lbs.
Portability: Stationary
Manufacturer Warranty:
Warranty Detail: Craftsman Warranty
Motor-Engine:
Voltage: 240 volts
Horsepower: 5.4 hp
Type: Induction

View all specifications...

  • SYWR! Buy $50 or more in Fine Jewelry and receive $10 off Craftsman tools Sold by Sears.See details Offer ends   15-Feb-2012 See details.
  • Buy a Compressor and receive 25% off an Air Tool or Compressor Accessory. Items Sold by Sears. Offer ends   29-Feb-2012 See details.
Availability & Rewards

Specifications & Dimensions

Product Overview:
Item Weight (lbs.): 415.0 lbs.
Portability: Stationary
Manufacturer Warranty:
Warranty Detail: Craftsman Warranty
Motor-Engine:
Voltage: 240 volts
Horsepower: 5.4 hp
Type: Induction
Hose:
Function: Compressed air
SCFM Delivery:
SCFM Delivery At 100 psi: 13.3 SCFM
SCFM Delivery At 175 psi: 12.8 SCFM
Tank:
Compressor Tank Capacity: 80 gal.
Compressor Tank Pump Style: Twin-V
Maximum Compressor psi: 175 psi
Compressor Tank Type: Vertical

Special Offers

Overview

Ratings & Reviews

Guides & Policies

Product Description

This 80 gallon Craftsman Professional stationary air compressor with 2-stage pump is designed for dedicated workshop use. Its 2-stage oil-lube belt drive cast-iron pump offers excellent long-term durability. Low RPM belt-drive design is much quieter than direct drive designs. 14.1 SCFM @90PSI combined with a 80 gallon tank size and 175 PSI Max Tank Pressure provide the air flow necessary to reliably power multiple air tools and continuous use air tools like sanders and grinders. Runs on 230 Volts and should only be installed by a professional licensed electrician.

This 80 gallon Craftsman Professional stationary air compressor with 2-stage pump is designed for dedicated workshop use. Its 2-stage oil-lube belt drive cast-iron pump offers excellent long-term durability. Low RPM belt-drive design is much quieter than direct drive designs. 14.1 SCFM @90PSI combined with a 80 gallon tank size and 175 PSI Max Tank Pressure provide the air flow necessary to reliably power multiple air tools and continuous use air tools like sanders and grinders. Runs on 230 Volts and should only be installed by a professional licensed electrician.

Added on February 16, 2009



Customer Ratings And Reviews

Video Reviews

Do you own this product?


Product Rating:

    Written Reviews

    Overall Rating

    (7 reviews)

    7 of 7 (100%) customers would recommend this product to a friend.


    See only reviews with...

    Click on the Pros and Cons above to filter reviews

    See all reviews for this product

    Product Reviews

    Profile Avatar looking for durability

    Great Compressor for the money May 13, 2010
    By BareBones of Boise, ID
    Pros:
    Quiet,Runs cool
    Cons:
    No wiring directions

    This is a great compressor that runs cool and it's quieter than a lot of maintenance free models.  I did the same modification with the moisture relief valve at the bottom as a previous reviewer did with 2- 90 degree street elbows, a 10 inch nipple and a 1/4 turn ball valveto avoid having to crawl on hands and knees to release moisture. .  I also drilled a hole in the plastic on/off switch cover so I could access the pressure adjustment screw without having to remove the plastic cap.  Additionally, I ran 2 couplers so I can run multiple hoses simultaneously.

    The only complaint I have is that there were no instructions for wiring a power cord to it.  I expected that it wouldn't come with a cord but Sears on-line help did nothing but waste my time.  They directed me to an 800 number to call for help and they hung up on me.  I was pretty sure I had it wired correctly (and I did) but it would have been nice to know for sure before putting the juice to it.

    I would certainly buy this again and would recommend it.

    did you find this review helpful?
    (Report a concern)
    Profile Avatar a professional
    a bargain hunter
    a DIYer
    looking for durability
    a Craftsman Club Member
    Mr. Fix it
    married

    No need to take a break, Just keep on working. September 26, 2009
    By ispep1012 of Munger, MI
    Cons:
    A little on the loud side.

    Has enough power to keep on working no matter what air tool your using.

    did you find this review helpful?
    (Report a concern)
    Profile Avatar

    It is amazing tool and every one should have one. August 06, 2009
    By larryotool of Little Falls, MN

    It is amazing it keeps up with me

    did you find this review helpful?
    (Report a concern)
    Profile Avatar

    Great compressor, but... June 08, 2009
    By TimOTR of Southern IL

    I haven't had this compressor long, but so far it is working flawlessly and runs surprisingly cool. After thirty minutes of continuous operation, the motor is almost cool to the touch, and while the pump cylinders are definitely warm, they are nothing like what you would expect after such use. There are a couple of things I do not like about the unit. The compressor pictured on the Sears website has a ball valve (which is preferable) and mine came with a 1/2" gate valve. The air cleaner fitting that screws into the cylinder was not even hand tight. The air pressure gauge was adjusted so that it almost faced the floor. Also, like with other compressors in its class, the drain valve is located at bottom center of the tank. To operate the valve, you have to get on your hands and knees and reach way under the compressor into a dark hole. I don't know about anyone else, but most shops I have been in, including my own, have enough creepy crawlies to make me wary of sticking any appendage into any dark hole. I do my best to keep a clean working environment, but we still find the occasional spider (some hazardous and some benign) or wasp or hornet. I removed the drain valve, and fitted the drain hole with an assembly consisting of a 90 degree street elbow, a 10 inch nipple, a 90 degree elbow and then the drain valve. The drain valve now sticks out just beyond the ring the compressor sits on so I don't have to risk a spider bite to drain the water. Besides the above mentioned minor gripes, this compressor really gets the job done. I bought it to operate a 1 drive impact wrench and it makes way more than enough air to power that and a couple other air tools at the same time. As long as this thing operates trouble free, it will be one heck of a bargain.

    did you find this review helpful?
    (Report a concern)
    See more reviews
