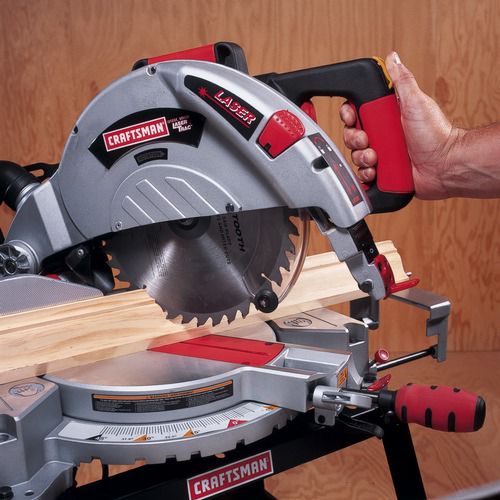

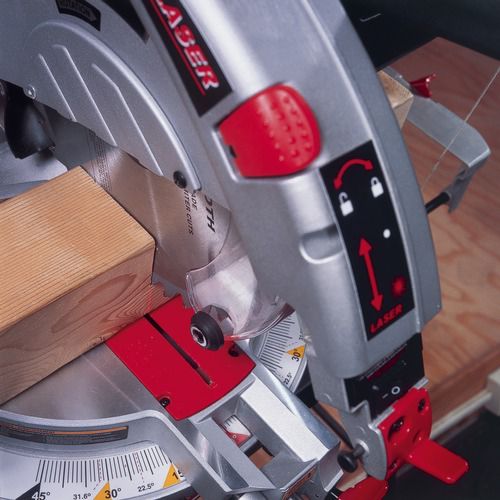

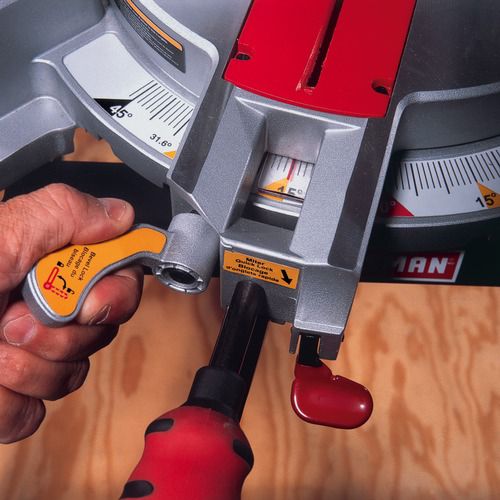

10 in. compound miter saw with dual view laser, upfront bevel lock, retractable extension tables and steel stand. Retractable dual view Laser Trac - laser line is projected on both the miter and bevel angle of the work piece allowing you to see the cut before cutting at any angle. Upfront bevel handle - Upfront bevel lock handle enables user to adjust bevel angle from the front of miter saw.
| Product Overview: | |
|---|---|
| General Warranty: | 1 year |
| Type: | Compound miter |
| Manufacturer Warranty: | |
| Warranty Detail: | Craftsman Warranty |
| Included with Item: | |
| Blade: | Yes |
| Clamp(s): | Yes |
| Extension Rails: | Yes, extension wings |
| Product Overview: | |
|---|---|
| General Warranty: | 1 year |
| Type: | Compound miter |
| Manufacturer Warranty: | |
| Warranty Detail: | Craftsman Warranty |
| Included with Item: | |
| Blade: | Yes |
| Clamp(s): | Yes |
| Extension Rails: | Yes, extension wings |
| Leg Set: | Yes |
| Stop Blocks: | Yes |
| Handles: | |
| Main Position: | Horizontal |
| Handle Type: | 3-position |
| Blade: | |
| Number Teeth: | 40 |
| Class: | Carbide |
| Diameter (In): | 10 in. |
| Motor-Engine: | |
| Amps: | 15.0 |
| Motor Brake: | Electric |
| Speed Range RPM: | 4800 rpm |
| Voltage: | 120 volts |
| Bearings: | Ball |
| Type: | Universal |
| Blade, Materials & Finish: | |
| Material: | Carbide tipped |
| Blade, Use: | |
| Use for Crosscuts: | Yes |
| General Features: | |
| 45 Deg. Bevel Capability: | 1-1/2 x 5-1/2 in. |
| 45 Deg. Miter Capability: | 2-5/8 x 3-1/2 in. |
| 90 Deg. Capability: | 2-5/8 x 5-1/2 in. |
| Arbor Size: | 5/8 in. |
| Arbor Type: | Locking |
| Table Material: | Die cast aluminum |
| 45 Deg. Miter-Bevel Capability: | 1-1/2 x 3-1/2 in. |
| Fence Type: | Rapid-release sliding |
| Table Dimensions: | 11-3/8 in. (diameter) |
| Cutting Tool: | |
| Miter Detents: | 0, 15, 22-1/2, 31.6 and 45 deg. left/right |
Overview
Ratings & Reviews
Guides & Policies
10 in. compound miter saw with dual view laser, upfront bevel lock, retractable extension tables and steel stand. Retractable dual view Laser Trac - laser line is projected on both the miter and bevel angle of the work piece allowing you to see the cut before cutting at any angle. Upfront bevel handle - Upfront bevel lock handle enables user to adjust bevel angle from the front of miter saw.
Added on February 16, 2009
Overall Rating
(25 reviews)
24 of 25 (96%) customers would recommend this product to a friend.
2 people thought this was helpful.
I just laid a floor this past year with this saw to help cut the flooring. It did a great job and I would highly recommend this saw.
The ability to easliy adjust to miter or cut and the ability to easily move it from one area of the job to another was great. This saw is precise and work well in many situations. My parents floor would not have been placed as fast or nicely as it did with this saw making the major cuts. I am looking at placing a deck at my parents this summer and real am looking forward to using this saw again. Plus I am looking at making a display case soon and the ability to cut thick wood pieces fast and accurate is great.
0 people thought this was helpful.
Bought this saw 4+ years ago, but it didn't get used much until recently. (Overall it probably hasn't been used more than a dozen times.) The other day I noticed the blade binding and slipping while cutting a 2x6. Upon examination I found the laser guide case was cracked. On further examination the bolt that mounts the guide to the motor appears to tighten against the plastic casing itelf. After considerable resaerch (you can't find the replacement guide online or in the manual), I got in touch with Sears PartsDirect and learned a replacement laser would cost me nearly $90! I think I bought the whole saw - table and all - on sale for $150. The laser is a bad design and cheaply made. No way I'd drop another $90 for this saw when I can find a used saw for $60!
Bought this saw 4+ years ago, but it didn't get used much until recently. (Overall it probably hasn't been used more than a dozen times.) The other day I noticed the blade binding and slipping while cutting a 2x6. Upon examination I found the laser guide case was cracked. On further examination the bolt that mounts the guide to the motor appears to tighten against the plastic casing itelf. After considerable resaerch (you can't find the replacement guide online or in the manual), I got in touch with Sears PartsDirect and learned a replacement laser would cost me nearly $90! I think I bought the whole saw - table and all - on sale for $150. The laser is a bad design and cheaply made. No way I'd drop another $90 for this saw when I can find a used saw for $60!
a Craftsman Club MemberI bought this item for my husband and he loves it. It was on sale when we bought it and it is worth every penny.
Great Saw for trim work and other DIY work. Fast setup and easy to move around.
I just laid a floor this past year with this saw to help cut the flooring. It did a great job and I would highly recommend this saw.
The ability to easliy adjust to miter or cut and the ability to easily move it from one area of the job to another was great. This saw is precise and work well in many situations. My parents floor would not have been placed as fast or nicely as it did with this saw making the major cuts. I am looking at placing a deck at my parents this summer and real am looking forward to using this saw again. Plus I am looking at making a display case soon and the ability to cut thick wood pieces fast and accurate is great.
