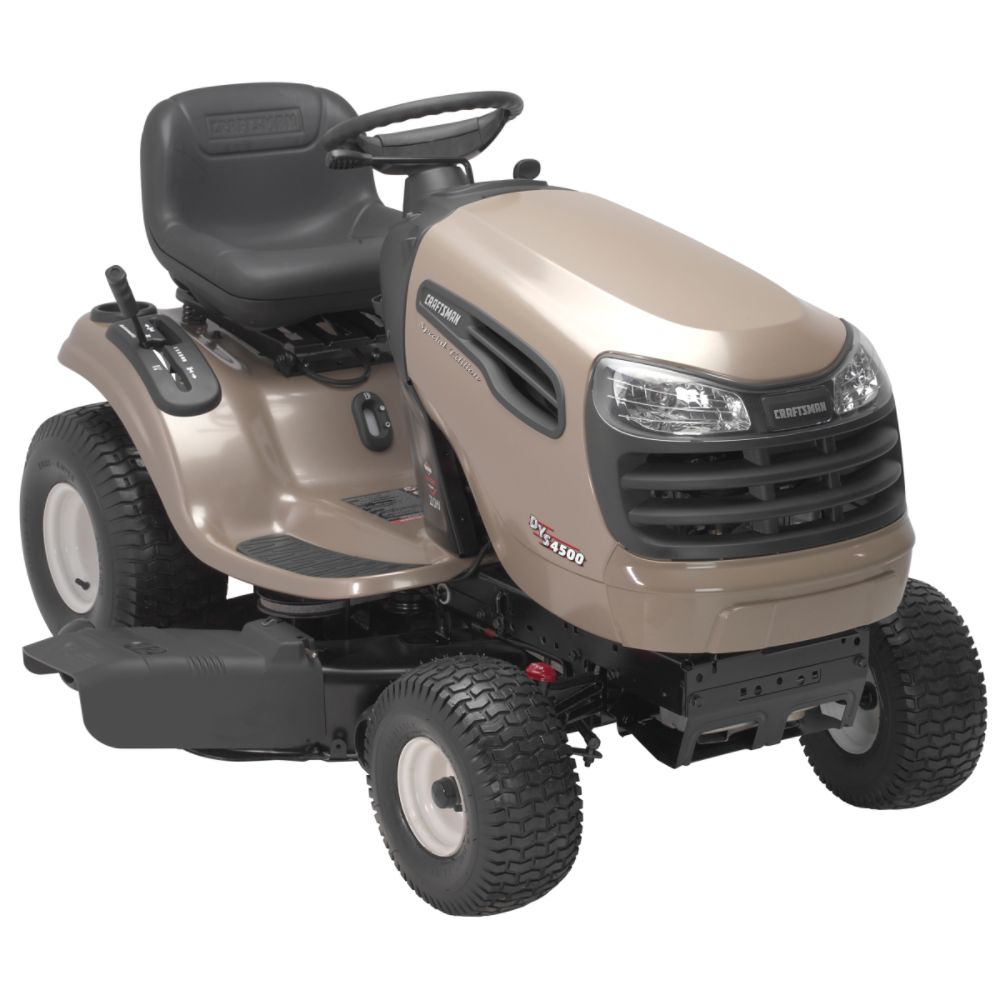

Craftsman 22 hp 42" Deck Deluxe Yard Tractor (CA)

Sears Item# 07128638000 | Model# 28638
Close

Create a Review

 Rating 3.5 | 3 Reviews | Create a Review

This item is temporarily unavailable.To find a similar item, scroll down or enter a term in the search box above.

At a Glance

Specifications

Special Offers

Cutting grass has never been this easy. Powered by a Briggs & Stratton® 22 hp Intek V-twin engine, this yard tractor is powerful, durable and exceptionally efficient. Featuring a large, 42" cutting deck and an EZ Drive hydrostatic automatic transmission, this yard tractor will keep your outdoor space looking its best.

Read full description...

Controls and Features:
Shifter Location: Fender
Steering Type: Sector and pinion
Steering Wheel Type: Deluxe
Dimensions:
Item Weight (lbs.): 516.0 lbs.
Product Overview:
General Warranty: 2 year full, 5 year frame & front axle
Lawn Tractor Type: Hydrostatic

View all specifications...

  • Online Only! Save 10% off any tractor attachment with purchase of any tractor Sold by Sears. Offer ends   25-Feb-2012 See details.
  • Buy More Save More! On Lawn and Garden items Sold by Sears! Discount applies in cart. See details. Offer ends   09-Feb-2012 See details.
  • No interest if paid in full within 12 months when you use a qualifying Sears card on all items over $299 through 02/15/2012.Interest will be charged to your account from the purchase date if the purchase balance is not paid in full within the 12 months or if you make a late payment. Minimum payments required. Items sold by Sears only. See details
View More Offers
Availability & Rewards

Specifications & Dimensions

Controls and Features:
Shifter Location: Fender
Steering Type: Sector and pinion
Steering Wheel Type: Deluxe
Dimensions:
Item Weight (lbs.): 516.0 lbs.
Product Overview:
General Warranty: 2 year full, 5 year frame & front axle
Lawn Tractor Type: Hydrostatic
Transmission Type: HYDROSTATIC AUTOMATIC
Color:
Overall Color: Gold
Installation Requirements:
Setup Requirements: Some assembly required
Chassis:
Brakes Type: Disk
Frame Type: Channel
Front Axle Material: Cast iron
Step Thru Frame: Yes
Wheel Grease Zerks: Yes
Handling & Operating:
Speed & Direction Control: Motion lever
Turning Radius: 16 in.
Drive System:
Power Transfer Device: Hydrostatic
Speeds, Forward: Infinite
Speeds, Reverse: Infinite
Power Propulsion Type: Transmission
Transmission Type: Hydrostatic
Motor-Engine:
Air Filter Type: Auto-type paper
Cooling Fan: Yes
Cooling System Type: Fan-cooled
Cylinders No.: 2
Motor CC: 725 cc
Electronic Ignition: Yes
Engine Brand: Briggs & Stratton(r)
Lubrication System: Full pressure
Oil Filter: Yes
Engine Series: Intek V-Twin
Cylinder Liner: Cast iron
Horsepower: 22 hp
Overhead Valve Engine: Yes
Valve Design: Overhead
Wheels & Tires:
Front: 15 x 6 x 6 in.
Rear Tire Size: 20 x 8 x 8 in.
Type: Turf saver
Fuel System:
Fuel Capacity: 3 gal.
Accessories Accepted:
2 Bin Bagger: #24891/#24897
3 Bin Bagger: #24892
Accepts Bagger: 24891/24892
Hauling Equipment: Yes
Lawn Care Attach: Yes
Mulch Kit Part Number: #33742
Snow Blade or Thrower: Yes
Convenience:
Cup Holder: Yes
Cruise Control: Yes
Seat, Adjustable: Yes
Cut:
Cutting Blades Number: 2
Cutting Deck Type: Precision cut plus
Cutting Height Adj. Ease: Tools
Cutting Height Adj. Type: One lever
Cutting Positions: 6
Deck Cut Width: 42 in.
Deck Thickness (Gauge): 13
Gauge Wheels: Yes
Cutting Range: 1-1/2 to 4 in.

Special Offers

  • Offer Options
    • See Details
  • See details -- No interest if paid in full within 12 months when you use a qualifying Sears card on all items over $299 through 02/15/2012.Interest will be charged to your account from the purchase date if the purchase balance is not paid in full within the 12 months or if you make a late payment. Minimum payments required. Items sold by Sears only.
  • Online Only! Save 10% off any tractor attachment with purchase of any tractor Sold by Sears. Offer ends   25-Feb-2012
    See details.  See more offers

Overview

Ratings & Reviews

Guides & Policies

Product Description

Cutting grass has never been this easy. Powered by a Briggs & Stratton® 22 hp Intek V-twin engine, this yard tractor is powerful, durable and exceptionally efficient. Featuring a large, 42" cutting deck and an EZ Drive hydrostatic automatic transmission, this yard tractor will keep your outdoor space looking its best.



  • Powerful 22 hp B/S Intek V-Twin engine with pressure lube
  • Only available in California
  • Exclusive 42" precision cut plus deck system
  • EZ drive hydrostatic automatic transmission
  • Fender shift for added convenience
  • 4 adjustable gauge wheels
  • Spring loaded deck lift system
  • Handy cup holder
  • Wider step thru area
  • Automotive type slide seat system


  • Weight: 516 lbs
  • Color: Black
  • Fully assembled
  • 2-year full, 5-year frame and front axle warranty


Added on February 16, 2009



Customer Ratings And Reviews

Video Reviews

Do you own this product?


Product Rating:

    Written Reviews

    Overall Rating

    (3 reviews)

    2 of 3 (66%) customers would recommend this product to a friend.


    See only reviews with...

    See all reviews for this product

    Product Reviews

    Profile Avatar

    Runs Like a Top July 01, 2008
    By JessyDog of Mississippi
    See all of this author's reviews

    I got this tractor in April '06. It's in the middle of its third mowing season. Aside from oil & filter changes, the only maintenance I've done is blade replacements each spring. I use mulching blades, so I had to buy the mulch plug. The cutting deck has 6 height settings, I use #4 (6 is highest). That keeps my bermuda at about 1.75". I use the tractor to mow my one acre lot, once or twice each week. I probably put 60 hours on it each year. Still running on all the original belts after 135 hours on the motor. 22HP is plenty of power. I have some slopes, and it has no problem with them. If anything, it's a little light in the rear end...sometimes loses some traction on steep uphill climbs if the grass is moist. I've done the maintenance by the book, and take an electric leaf blower to it after every use, to get the clippings off the top of the deck, and to get the dust out of the motor. I have only one real complaint: I don't like the design or location of the oil drain. A plastic drain tube is included with the manuals and stuff, and you're supposed to fit that tube onto the drain spout, on the side of the motor...at the bottom just above the frame rail. Once the tube is on, you can twist the drain plug and pull out, and the oil is supposed to flow into the tube, and down into your drain pan/bucket. What actually happens is that the oil seeps out of the back of the drain plug that you pulled out, then along frame rail, and then drips down onto your garage/driveway floor. Closing the oil plug halfway will help, but now you're changing oil at a snail's pace. Also, the included drain tube should be at least twice as long. It's maybe 12-14" long, and there's no place to put anything to catch the oil (because the mower deck and front tire are in the way). Nothing a rag and some patience won't cure, but worth mentioning. It amazed me last spring, and this spring, after having spent almost six months in a shed, that it started on the first try. Part of that, of course, is the Craftsman battery. Speaking of which, the rubber strap that holds the battery down is starting to crack/split...probably not the right material for the heat. I think this tractor is an excellent value, even though the mulching blades and mulch plug had to be bought separately. I'd say the gas consumption is about average. The adjustable, high-back seat is very comfortable (except for being jet black...so don't park it in the sun). Feels very sturdy, well built. All in all, a great machine.

    did you find this review helpful?
    (Report a concern)
    Profile Avatar

    5 stars June 04, 2008
    By lawngator of California
    See all of this author's reviews

    A very good tractor, plenty of spare horsepower when needed. My last lawn tractor lasted well over 20 years. It was a Craftsman also, but not automatic.

    did you find this review helpful?
    (Report a concern)
    Profile Avatar

    1 star May 28, 2008
    By Buddy397 of Massachusetts
    See all of this author's reviews

    Replace tranny within 15 hours of use. Replaced cutting blade arbor shortly after. Have a concern with being under it more than using it to cut grass. Would not recommend to anyone that wants to use attachments.
