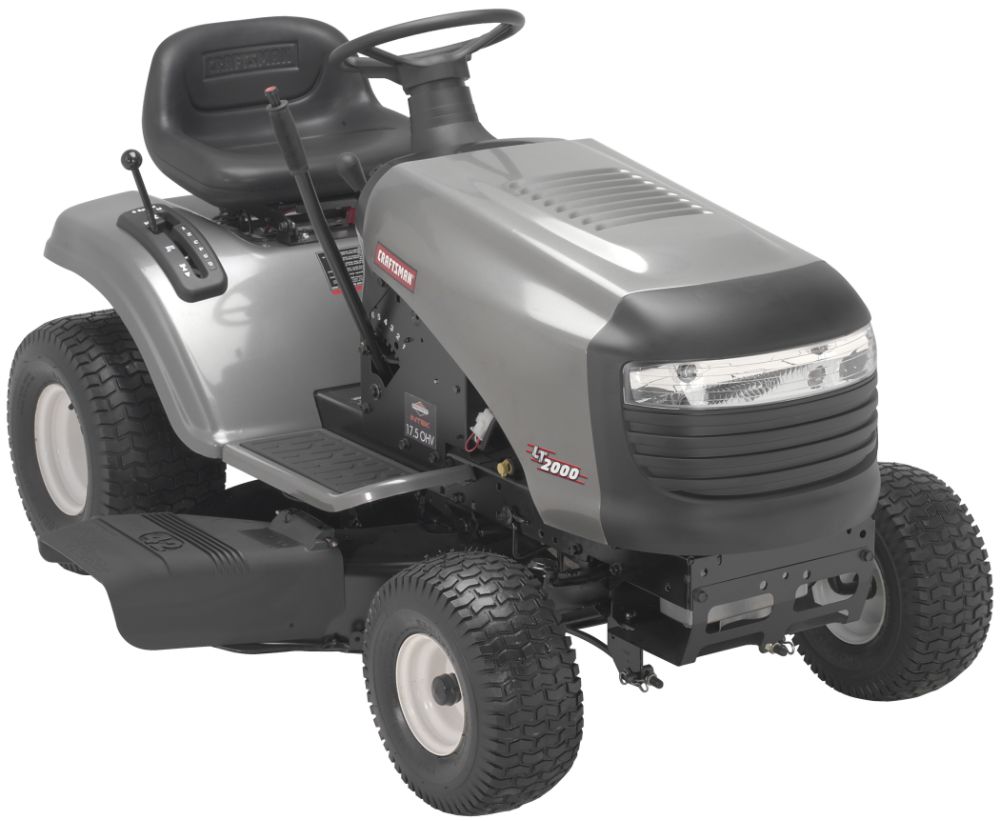

Craftsman 17.5 hp 42 in. Deck Lawn Tractor
Sears Item# 07128803000 | Model# 28803This item is temporarily unavailable.To find a similar item, scroll down or enter a term in the search box above.
At a Glance
Specifications
Special Offers
Powered by a Briggs & Stratton 17.5 hp Intek engine( includes oil filter) with overhead valves for cooler running and longer life. Match the speed of the tractor with the job that needs to be done with our 6 speed transaxle. A 42" vented decksystem with more air flow for better cutting and bagging.
| Controls and Features: | |
|---|---|
| Shifter Location: | Fender |
| Steering Type: | Sector and pinion |
| Steering Wheel Type: | Standard |
| Dimensions: | |
| Item Weight (lbs.): | 495.0 lbs. |
| Product Overview: | |
| General Warranty: | 2 year full, 5 year frame & front axle |
| Lawn Tractor Type: | Gear drive |
- Online Only! Save 10% off any tractor attachment with purchase of any tractor Sold by Sears. Offer ends 25-Feb-2012 See details.
- Buy More Save More! On Lawn and Garden items Sold by Sears! Discount applies in cart. See details. Offer ends 09-Feb-2012 See details.
Availability & Rewards
- Available for Layaway —the easy way to pay.
- Special pricing for Hawaii , Alaska and Puerto Rico
Specifications & Dimensions
| Controls and Features: | |
|---|---|
| Shifter Location: | Fender |
| Steering Type: | Sector and pinion |
| Steering Wheel Type: | Standard |
| Dimensions: | |
| Item Weight (lbs.): | 495.0 lbs. |
| Product Overview: | |
| General Warranty: | 2 year full, 5 year frame & front axle |
| Lawn Tractor Type: | Gear drive |
| Transmission Type: | Manual |
| Color: | |
| Overall Color: | Storm gray |
| Installation Requirements: | |
| Setup Requirements: | Some assembly required |
| Chassis: | |
| Brakes Type: | Disk |
| Frame Type: | Channel |
| Front Axle Material: | Steel |
| Frame Material: | 11 ga. formed steel |
| Step Thru Frame: | Yes |
| Wheel Grease Zerks: | Yes |
| Handling & Operating: | |
| Speed & Direction Control: | Shift lever |
| Turning Radius: | 18 in. |
| Drive System: | |
| Power Transfer Device: | Gear drive |
| Speeds, Forward: | 6 |
| Speeds, Reverse: | 1 |
| Power Propulsion Type: | Transmission |
| Transmission Type: | Manual |
| Motor-Engine: | |
| Air Filter Type: | Yes, dual air cleaner (paper) |
| Cooling Fan: | Yes |
| Cylinders No.: | 1 |
| Motor CC: | 502 cc |
| Electronic Ignition: | Yes |
| Engine Brand: | Briggs & Stratton(r) |
| Lubrication System: | Splash |
| Oil Filter: | Yes |
| Engine Series: | Intek |
| Cylinder Liner: | Cast iron |
| Horsepower: | 17.5 hp |
| Overhead Valve Engine: | Yes |
| Wheels & Tires: | |
| Front: | 15 x 6 x 6 in. |
| Rear Tire Size: | 18 x 9.5 x 8 in. |
| Type: | Turf saver |
| Fuel System: | |
| Fuel Capacity: | 1.25 gal. |
| Accessories Accepted: | |
| 2 Bin Bagger: | #24891 |
| 3 Bin Bagger: | #24892 |
| Accepts Bagger: | 24891/24892 |
| Hauling Equipment: | Yes |
| Lawn Care Attach: | Yes |
| Mulch Kit Part Number: | #33742 |
| Snow Blade or Thrower: | Yes |
| Convenience: | |
| Cup Holder: | Yes |
| Seat, Adjustable: | Yes |
| Cut: | |
| Cutting Deck Type: | Vented |
| Cutting Height Adj. Ease: | Tools |
| Cutting Height Adj. Type: | One lever |
| Cutting Positions: | 6 |
| Deck Cut Width: | 42 in. |
| Deck Thickness (Gauge): | 13 |
| Cutting Range: | 1-1/2 to 4 in. |
Overview
Ratings & Reviews
Guides & Policies
Product Description
Powered by a Briggs & Stratton 17.5 hp Intek engine( includes oil filter) with overhead valves for cooler running and longer life. Match the speed of the tractor with the job that needs to be done with our 6 speed transaxle. A 42" vented decksystem with more air flow for better cutting and bagging.
- Click here for online brochure
- 17.5 hp B/S Intek engine (premium air filter)
- 42" vented deck system
- 6 speed transaxle
- Handy cup holder
- Fender shift for added convenience
- 2 Year Full, 5 Year Frame and Front Axle Warranty
- Engine power values are as rated by the engine manufacturer.
Added on February 16, 2009
Customer Ratings And Reviews
Overall Rating
(29 reviews)
27 of 29 (93%) customers would recommend this product to a friend.
Our most helpful positive review
26 people thought this was helpful.
Really Nice Machine March 06, 2009
Really a nicely built machine. Of course, the 17 H.P. Briggs & Stratton Engine is a marvelous power plant, my last lawn tractor had a 12 H.P. B&S Engine and, with proper maintenence, it's still running after 21 years. The larger battery should provide sufficient starting power for several seasons when compared to the earlier motorcycle type batteries. The mulching blade was a snap to put on and the associated discharge blocking plate just snapped into place. What a great price, my earlier 1988 MTD tractor was $850; What other major purchase has only gone up $150 in the last 21 years ? The one potentially negative aspect is reliability, it is far more mechanically complex than my 88 model which could potentially lead to more repairs over the years. The extended repair warranty may be worth the money if your not mechanically inclined ! I guarantee that one drive belt change would justify the cost of the warranty !
Our most helpful negative review
7 people thought this was helpful.
2 stars October 07, 2008
I just bought this tractor to replace my old Craftsman of 11 years. Well, the first two days with my new tractor I had to level the deck, tighten bolts, grease fittings and place cotter pins where there was none. I never had to do that much work on my old tractor in 11 years. SO, I TOOK BACK THE NEW ONE, GOT MY MONEY BACK AND BOUGHT PARTS FOR MY OLD ONE. MY OLD ONE IS QUIETER AND A BETTER RIDE AND AM GLAD I DECIDED TO RE-FURBISH IT. MY NEXT MOWER WILL NOT BE A CRAFTSMAN BECAUSE THEY ARE CLOSING THE LOCAL "SERVICE/PARTS CENTER" IN MOLINE, ILLINOIS
See only reviews with...
Product Reviews
country acres
Large urban lawn
This craftsman lawn tractor doesn't measure up to my last one! May 03, 2010
By MattinBoston
of Sherborn, MA
This **** new craftsman lawn tractor just doesn't measure up to the quality standards I was used to from my old one!
did you find this review helpful?
Been a good one March 10, 2010
By Krimsun
of Evadale, TX
The lawn mover is great. I replaced the current one (this) over a an older model. I have no complaits cause it good. I wouldnt go with any other brand since I;ve been happy with Craftsman mowers.
did you find this review helpful?
Great Mower May 04, 2009
By Anonymous
of TX
My dad bought this for me and it is fantastic. I have a big yard to mow with some areas of thick grass. This mower can handle it. It's easy to use and comfortable. I would definately recommend it.
did you find this review helpful?
happy camper April 28, 2009
By weinner
of southern IL.
I bought it Jan 09 , it's a 2008 model, Got a excellent deal. This is my first new rider. It works perfect ,I love the Ros switch real handy when needing to back-up. Great for small,and large yards too great turning radius.I also bought the rear bragger, twin hard, love it a lot. I can't find any thing wrong with it. I have 20 hours on it and no problems.
did you find this review helpful?
