22 hp 46 in. Deck Yard Tractor- Craftsman-Lawn & Garden-Riding Mowers & Tractors-Lawn Tractors
Free Shipping shop our biggest free shipping and delivery deal yet get free shipping for 3 months with shop your way max
Print

 07128836000
Enlarge Image

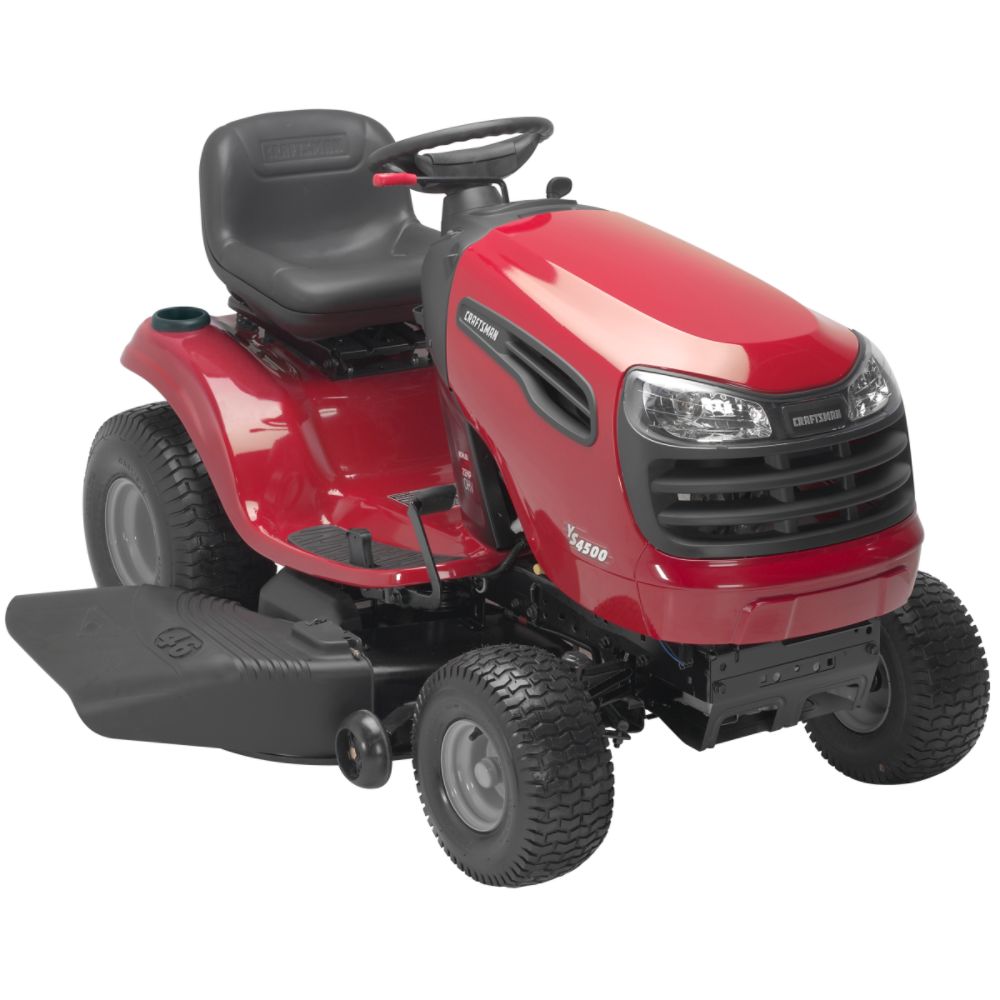

Craftsman 22 hp 46 in. Deck Yard Tractor

Sears Item# 07128836000 | Model# 28836
Close

Create a Review

This item is temporarily unavailable.To find a similar item, scroll down or enter a term in the search box above.

At a Glance

Specifications

Special Offers

Powered by a 22 hp Kohler Pro engine (includes oil filter) with overhead valves for cooler running and longer life. Match the speed of the tractor with the job that needs to be done with our EZ Drive hydrostatic/automatic transmission. A 46" precision cut plus deck system with four gauge wheels and more air flow for better cutting and bagging.

Read full description...

Cutting Deck & Blade
Anti-Scalp Gauge Wheels: Yes
Cutting Deck Type: Precision cut
Cutting Height Adjustment Type: Hand Lever
Cutting Height Maximum (in.): 4
Cutting Height Minimum (in.): 1.5
Cutting Positions: 6
Cutting Width (In.): 46
Deck Thickness (Gauge): 13

View all specifications...

  • Online Only! Free Home Delivery on Riding Mowers and Tractors over $1299 Sold by Sears! Offer ends   26-May-2012 See details.
  • Online Only! Extra 5% off Lawn and Garden items Sold by Sears. Discount seen in cart. Offer ends   26-May-2012 See details.
  • Buy any Craftsman Tractor and save $50 off any Bagger Sold By Sears! Discount in cart. See details Offer ends   26-May-2012 See details.
  • No interest if paid in full within 12 months when you use a qualifying Sears card on all Lawn and Garden items over $299 through 05/26/2012.Interest will be charged to your account from the purchase date if the purchase balance is not paid in full within the 12 months or if you make a late payment. Minimum payments required. Items sold by Sears only. See details
View More Offers
Availability & Rewards

Specifications & Dimensions

Cutting Deck & Blade
Anti-Scalp Gauge Wheels: Yes
Cutting Deck Type: Precision cut
Cutting Height Adjustment Type: Hand Lever
Cutting Height Maximum (in.): 4
Cutting Height Minimum (in.): 1.5
Cutting Positions: 6
Cutting Width (In.): 46
Deck Thickness (Gauge): 13
Number of Cutting Blades: 2
Number of Deck Anti-Scalp Gauge Wheels: 4
Product Overview:
Color/Finish: Red
General Warranty: 2 YEAR FULL, 5 YEAR FRAME & FRONT AXLE
Item Weight (lbs.): 514
Chassis:
Frame Type: Channel
Front Axle Material: Cast iron
Drive System:
Number of Forward Speeds: Infinite
Number of Reverse Speeds: Infinite
Shifter Location: Pedal control
Steering Wheel Type: Deluxe
Transmission Type: Hydrostatic Automatic
Turning Radius (in.): 16
Motor-Engine:
Air Filter Type: Dual
Cooling Fan: Yes
Cylinder Liner: Cast iron
Electronic Ignition: Yes
Engine Brand: Kohler(r)
Engine Lubrication System: Full pressure
Engine Series: Kohler Pro
Engine Size (cc): 597
Horsepower: 22
Number of Cylinders: 1
Overhead Valve Engine: Yes
Wheels & Tires:
Front Tire Size: 15 x 6 x 6 in.
Rear Tire Size: 20 x 8 x 8 in.
Wheel Grease Zerks: Yes
Accessory or Attachment:
2 Bin Bagger Part Number: #24903
3 Bin Bagger Part Number: #24904
Accepts Bagger: Yes
Mulch Kit Part Number: #33746
Fuel System:
Fuel Capacity (gal.): 2.5
Convenience Features:
Cup Holder: Yes
SafetyFeatures:
Brakes Type: Disk
Controls and Features
Cruise Control: Yes
Seat
Adjustable Seat: Yes
Others:
Tractor Grade: Lawn Tractor

Overview

Ratings & Reviews

Guides & Policies

Product Description

Powered by a 22 hp Kohler Pro engine (includes oil filter) with overhead valves for cooler running and longer life. Match the speed of the tractor with the job that needs to be done with our EZ Drive hydrostatic/automatic transmission. A 46" precision cut plus deck system with four gauge wheels and more air flow for better cutting and bagging.

  • Exclusive 46" precision cut deck system w/ 4 adj. gauge wheels
  • Spring loaded deck lift system
  • EZ drive hydrostatic / automatic transmission
  • Foot pedal drive for added convenience
  • Handy cup holder
  • Wider step thru area
  • Automotive type slide seat system
  • 2 Year Full, 5 Year Frame and Front Axle Warranty
  • Engine power values are as rated by the engine manufacturer.

Added on February 16, 2009



Customer Ratings And Reviews

Video Reviews

Do you own this product?


Product Rating:

    Written Reviews

    Overall Rating

    (5 reviews)

    4 of 5 (80%) customers would recommend this product to a friend.

    Write a review for a chance to win a $1,000 gift card each month!See Official Rules

    Note: Some reviewers may have received a benefit, like a sweepstakes entry or rewards program points, in exchange for writing this review. The benefits were not conditioned on the positive or negative content of the review.

    Our most helpful positive review

    5 people thought this was helpful.


    Great Value February 04, 2009

    After doing much research I settled on this mower and really debated on it's bigger brother 25HP 48In model item no. 28890. I do think the 25HP is worth the extra 350 if you have the money because...(read below) Back on track, this mower has more then enough power, with the Kolher engine full oil pressure and oil filter I think this engine will outlast the rest of the mower with proper care. Sears has a bumper for $19 that is a must if you ask me, makes it easy to lift the front end, not hit stuff, and tear the front end off. (Did I mention my wife will be using it) Check the deck to see if it is level, I had to do some minor adjustments, plus I had to put a belt in it's proper path, manual was good help, no problems. Note: the pedal operation hydrostatic tran. works awesome compared to the 6 speed transmission, UNLESS you have hills then the hydrostatic foot pedal will spin out fairly easy b/c a little gas is a lot when you are not locked into a gear. Maybe the hydrostatic without foot control but the lever would be ok, not sure but this one spins out on even small inclines with damp grass, not good. Ok the 25HP 48Inch is worth the extra money b/c it is twin cyl. quieter and smoother running, longer life. With the 48-inch deck you get three cutting blades with 2 more inches of cut. The three blades is an upgrade more then the 2 inches. The tires are 2 inches wider. Plus, it may have an electric switch to engage the blades instead of the old level like this mower has. My wife would rather have an electric switch, not that I find it a big deal or anything.

    Our most helpful negative review

    5 people thought this was helpful.


    lawn tractor October 11, 2008

    We purchased this lawn mower in August 08. My husband loved this at first. A problem he had was when you go in reverse it tears up the grass,and if you look in the manuel it states not to go backwards? huh? Finally not even teo months later my husband was mowing the lawn when the tractor just went dead and wouldn't start. I called sears and it took me 2 hours to finally get to someone and then I explained everything so I was transferred again. Customer ser vice is HORRIBLE@! How ever I spoke with someone who was very nice and sent out a technican well it was the carborater that was gone. So sears has made it right but replacing it with a brand new one and giving us a 50.00 gift card for the inconveniece. I wouldn't recommend for the money


    See only reviews with...

    Click on the Pros and Cons above to filter reviews

    See all reviews for this product

    Product Reviews

    Profile Avatar mowing the lawn

    Craftsman yard tractor is a great buy. January 06, 2010
    via Community Review
    By mykidsmomx4 of Galesburg, IL
    Pros:
    Looks Great,Lots of optional add-ons,Speeds up mowing time
    Cons:
    None

    My boyfriend bought one of these last summer. We looked at all of the local stores and big names. After seeing the Craftsman series of riding mowers, everything else looked cheap (as in 'ready to fall apart').

    It was funny to us that they offered to deliver it for a charge (which we declined, instead planning to borrow a trailer from a friend) and were told "but that charge includes us putting it all together for you". We declined again. When "J" inquired about when he could pick it up and asked about what he would need to assemble on it (just before we left) the associate told him they would call when it was in stock (we knew it would be 2 weeks) and that they would put it together for him, free of charge (um, I thought that was included in the price of the delivery that we didn't choose.)  LOL

    The product is awesome. It turns great, idles smoothly, cuts beautifully (even very close to his hedges). He also loves all the extras that are available for it (you'd think he was customizing a new car the way he gets excited about the add-ons!)

    did you find this review helpful?
    (Report a concern)
    Profile Avatar

    Great Value February 04, 2009
    via Sears.com
    By HIGHonGRASS of Goochland, VA

    After doing much research I settled on this mower and really debated on it's bigger brother 25HP 48In model item no. 28890. I do think the 25HP is worth the extra 350 if you have the money because...(read below) Back on track, this mower has more then enough power, with the Kolher engine full oil pressure and oil filter I think this engine will outlast the rest of the mower with proper care. Sears has a bumper for $19 that is a must if you ask me, makes it easy to lift the front end, not hit stuff, and tear the front end off. (Did I mention my wife will be using it) Check the deck to see if it is level, I had to do some minor adjustments, plus I had to put a belt in it's proper path, manual was good help, no problems. Note: the pedal operation hydrostatic tran. works awesome compared to the 6 speed transmission, UNLESS you have hills then the hydrostatic foot pedal will spin out fairly easy b/c a little gas is a lot when you are not locked into a gear. Maybe the hydrostatic without foot control but the lever would be ok, not sure but this one spins out on even small inclines with damp grass, not good. Ok the 25HP 48Inch is worth the extra money b/c it is twin cyl. quieter and smoother running, longer life. With the 48-inch deck you get three cutting blades with 2 more inches of cut. The three blades is an upgrade more then the 2 inches. The tires are 2 inches wider. Plus, it may have an electric switch to engage the blades instead of the old level like this mower has. My wife would rather have an electric switch, not that I find it a big deal or anything.

    did you find this review helpful?
    (Report a concern)
    Profile Avatar

    Plenty for the money December 07, 2008
    via Sears.com
    By NashvilleSuburbanFarmer of Nashville, TN

    If you can find this tractor on sale, you'll find it has much more HP and features than others at this price point. Mower cuts well, plenty of power. No complaints yet.

    did you find this review helpful?
    (Report a concern)
    Profile Avatar

    great mower October 20, 2008
    via Sears.com
    By justlovinit of Eastern PA

    It cuts very nice, and at a good speed. I was surprised how fast you can go and it cuts perfectly. I like the feature to set it so you can back up with out disengaging the blade. I make the kids leave it at the setting to disengage when backing up, just to be a little safer. I have a pretty good slope in one part of my yard and have no problems with it although my old one did.

    did you find this review helpful?
    (Report a concern)
