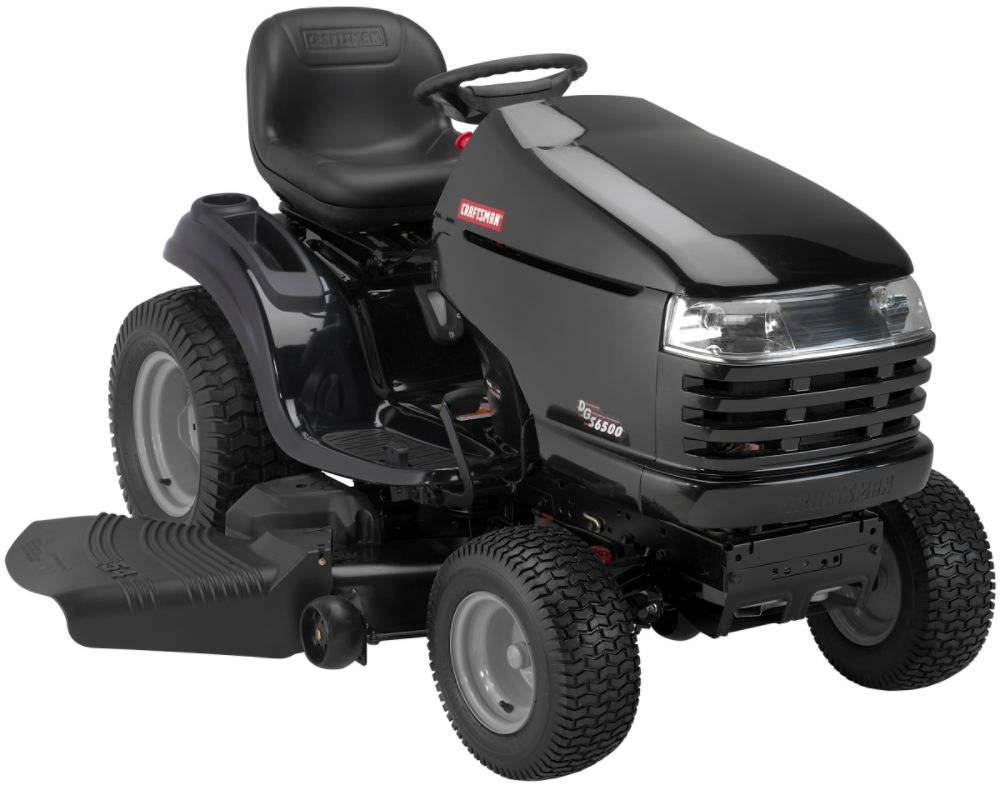

Craftsman 26 hp 54" Deck Garden Tractor

Sears Item# 07128860000 | Model# 28860
Close

Create a Review

 Rating 3.5 | 12 Reviews | Create a Review

This item is temporarily unavailable.To find a similar item, scroll down or enter a term in the search box above.

At a Glance

Specifications

Special Offers

This Craftsman Garden Tractor is powered by a 26 hp Kohler Courage V-Twin engine, and it is capable of using ground engaging attachments. With an Extra heavy-duty EZ-drive hydrostatic automatic transmission and a large, 54" cutting deck, this Yard Tractor is efficient, durable and exceptionally easy to use.

Read full description...

Product Overview:
General Warranty: 2 year full, 5 year frame & front axle
Item Weight (lbs.): 596.0 lbs.
Lawn Tractor Type: Hydrostatic
Color:
Overall Color: Black
Installation Requirements:
Setup Requirements: Some assembly required

View all specifications...

  • Online Only! Save 10% off any tractor attachment with purchase of any tractor Sold by Sears. Offer ends   25-Feb-2012 See details.
  • Buy More Save More! On Lawn and Garden items Sold by Sears! Discount applies in cart. See details. Offer ends   09-Feb-2012 See details.
  • No interest if paid in full within 12 months when you use a qualifying Sears card on all items over $299 through 02/15/2012.Interest will be charged to your account from the purchase date if the purchase balance is not paid in full within the 12 months or if you make a late payment. Minimum payments required. Items sold by Sears only. See details
View More Offers
Availability & Rewards

Specifications & Dimensions

Product Overview:
General Warranty: 2 year full, 5 year frame & front axle
Item Weight (lbs.): 596.0 lbs.
Lawn Tractor Type: Hydrostatic
Color:
Overall Color: Black
Installation Requirements:
Setup Requirements: Some assembly required
Chassis:
Front Axle Material: Cast iron
Frame Type: Channel
Step Thru Frame: Yes
Handling & Operating:
Brakes Type: Disk
Cruise Control: Yes
Electric Clutch For Attach.: Yes
Hour Meter: Yes
Speed & Direction Control: 1 foot pedal
Steering Type: Sector and pinion
Steering Wheel Type: Deluxe
Turning Radius: 18 in.
Drive System:
Shifter Location: Pedal control
Speeds, Forward: Infinite
Speeds, Reverse: Infinite
Power Propulsion Type: Transmission
Power Transfer Device: Hydrostatic
Transmission Type: Hydrostatic
Motor-Engine:
Air Filter Type: Yes, dual air cleaner (paper)
Cooling Fan: Yes
Cylinders No.: 2
Motor CC: 725 cc
Electronic Ignition: Yes
Engine Brand: Kohler(r)
Horsepower: 26 hp
Lubrication System: Full pressure
Oil Filter: Yes
Engine Series: Kohler Pro
Cylinder Liner: Cast iron
Valve Design: Overhead
Wheels & Tires:
Front: 16 x 6.5 x 6 in.
Rear Tire Size: 23 x 10.5 x 8 in.
Wheel Grease Zerks: Yes
Type: Turf saver
Fuel System:
Fuel Capacity: 4 gal.
Accessories Accepted:
3 Bin Bagger: #24896
Accepts Bagger: 24896
Dozer Blade: Yes
Ground-Engaging Attach.: Yes
Hauling Equipment: Yes
Mulch Kit Part Number: #24154
Snow Blade or Thrower: Yes
Lawn Care Attach: Yes
Convenience:
Cup Holder: Yes
Seat, Adjustable: Yes
Cut:
Cutting Blades Number: 3
Cutting Deck Type: Precision cut plus
Cutting Height Adj. Ease: Tools
Cutting Height Adj. Type: One lever
Cutting Positions: 7
Deck Cut Width: 54 in.
Deck Thickness (Gauge): 11
Gauge Wheels: Yes
Number of Deck Gauge Wheels: 4
Cutting Range: 1-1/2 to 4 in.

Special Offers

  • See details -- No interest if paid in full within 12 months when you use a qualifying Sears card on all items over $299 through 02/15/2012.Interest will be charged to your account from the purchase date if the purchase balance is not paid in full within the 12 months or if you make a late payment. Minimum payments required. Items sold by Sears only.
  • Online Only! Save 10% off any tractor attachment with purchase of any tractor Sold by Sears. Offer ends   25-Feb-2012
    See details.  See more offers

Overview

Ratings & Reviews

Guides & Policies

Product Description

This Craftsman Garden Tractor is powered by a 26 hp Kohler Courage V-Twin engine, and it is capable of using ground engaging attachments. With an Extra heavy-duty EZ-drive hydrostatic automatic transmission and a large, 54" cutting deck, this Yard Tractor is efficient, durable and exceptionally easy to use.



  • 26 hp Kohler Courage V-Twin Engine with pressure full lube
  • Heavy-duty 54" deck
  • 4 adjustable gauge wheels and nose roller with large, 23" rear tires
  • Cut grass up to 7.5 MPH
  • 6-speed transmission
  • Foot pedal drive for added convenience
  • Spring loaded deck lift system
  • Handy cup holder
  • High back seat with arm rests
  • Automotive type slide seat system


  • Weight: 596 lbs
  • Color: Black
  • Fully assembled
  • 2-year full, 5 year frame and front axle warranty


Added on February 16, 2009



Customer Ratings And Reviews

Video Reviews

Do you own this product?


Product Rating:

    Written Reviews

    Overall Rating

    (12 reviews)

    7 of 12 (58%) customers would recommend this product to a friend.

    Our most helpful positive review

    5 people thought this was helpful.


    DGS 6500 November 09, 2008

    I bought this tractor last spring and have thoroughly enjoyed it thus far. I cut 2 acres with it, and have had absolutely no problem with the 54" deck. this baby really throws the grass! Reduced my cutting time by 20 minutes, where I used to just cut flat out as fast as I could. Now. I take my time and can cut at a slower speed while still saving time (Had a 14 HP w/42" deck before. I am impressed at the appearance of the finished cut too - better than I expected for the size of the deck! Never converted to the mulching blades this fall, but was pleasently surprised at how well this mower still mulched/chopped the leaves (never had to sweep/bag them at all). I basically just use it to cut grass, and expect it to be a workhorse for this purpose for many years to come. The only complaint I have would be that the reverse pedal/mower speed is too slow when the mower is engaged.

    Our most helpful negative review

    11 people thought this was helpful.


    GT 5000 54" garden tractor September 13, 2008

    My mower is less than 3 years old. At the end of the warranty period it started smoking very bad. I kept the maintenance up as usual. Last week the engine blew a rod thru the side wall and quit. Replacement engine is $1,399. I am also displeased with the 54" deck. Mine had a very hard time getting rid of the cut grass while mowing. The cut grass would build up on the walls of the mower deck to the point that it would wear down the ends of the blades. I started mowing when my grass was dry to eliminate this problem. It still built up anyway. Blades are $25 each times three. I spent more time trying to get the built up cut grass out of the inside of the deck than acutally mowing! Very frustrating. Do not recommend the 54" deck nor the Briggs & Straton 22 hp engine.


    See only reviews with...

    Click on the Pros and Cons above to filter reviews

    See all reviews for this product

    Product Reviews

    Profile Avatar

    Can't use this mower when going down hill. September 17, 2009
    By Sergeatet of Platteville, WI
    Pros:
    turning radius for size very impressive
    Cons:
    smokes when mowing down an incline,Too many "Nannies

    All around a decent mower with one perhaps significant exception. When mowing down the slightest incline, smoke pours out the front end of the mower. That is very dissappointing. Something is clearly wrong.

    did you find this review helpful?
    (Report a concern)
    Profile Avatar

    After 2 yrs. it smokes like crazy I have to put oil every time. September 13, 2009
    By Sparkyggb of Grand Rapids, OH

    I bought a GT 5000 in summer of 2004 in 06 the motor really started smoking bad. Alot of blow by on rings it has  a 25 hp. kolher motor hydro tyranny's reverse is weak with full throttle pushing dirt, stone, or snow with chains and weights. I bought attachments but they don't fit anything else if I by a different mower, so I keep an eye on oil every time I mow, and now I fogg mosquitoes with it as I mow. I do not own a 26 hp 54" garden Tractor but this was the only one to write a review on, same tractor bigger motor, they don't have a 25 hp.  any more to replace in mine.  Around  $1600.00 to replace now. with a 26 hp. Hmmm might as well by new with warranty. ???? Sounds good to them $$$$

    did you find this review helpful?
    (Report a concern)
    Profile Avatar

    Great for a perfect, flat lawn. Anything else, look elsewhere. September 09, 2009
    By YouGottaCraftsWhat of State College, PA
    Pros:
    Engine,Hydro Drive System,Mowing Quality,Impressive Big Looks!
    Cons:
    Weak Parts,Cramped Driver Position,Too many "Nannies,Poor Traction,Fragile Mower Deck Parts,Loud Compared to Other Makes

    We got this machine along with our house purchase in 2007. Although it's an earlier model, it's still basically the same as this new, 2009 model.  Quite frankly, we beat the you-know-what out of this thing. It's not intentional, its just that our property is pretty rough. There's a lot of rocky areas, bumps and dips and some nasty hills. So I guess we've found just about every weak point this machine has. Here's what we've encountered.

    The Number 1 failure items are the aluminum stanchion's that the mower blade drive shafts run in. I think they are made to be sacrificial and lets just say it doesn't take much to kill them! Hit a rock hard once and that's it. Catch a piece of rope? There goes another one, hit a baseball, oops - I did it again!  In the last three seasons I've replaced 5 of them and I found paper work showing that the original owner had all three replaced the previous year when it was not even a year old!  Fortunately, they are pretty easy to replace if you're handy. They can be had on **** complete with new shaft and bearings ready to mount or you can rebuild them into a new housing using the existing shaft and bearings. I will say that when everything's running right, it does a nice job of mowing!

    The next thing to watch is the steering mechanisms. If you run into anything too hard the hubs will bend and twist to the point where the wheels are going in opposite directions! Sears knows this is a problem because the replacement parts are much heavier duty. I mean visably larger and heavier!

    While we're on the steering, watch for wear on the steering shaft gear. The teeth on this gear engage the plate that turns the wheels through the control rods. The plate seems to be strong but the teeth on the steering shaft get chewed up. I also found that when cresting a hill the front mower pulley will touch the bottom of the steering shaft. This makes some nice sparks and a nasty squeeling-grinding noise. Wow!  There's a bumper stop hanging down from the frame that looks like it's supposed to prevent this from happening but it doesn't seem to be long enough to do anything at all. Again, Sears knows the weak steering shaft is a problem as the replacement part seems to be hardened better. I've greased the gear and plate teeth to give some lubrication there and no, I don't care about dust and dirt collecting there in the grease. At least it's greasy dirt and not just dirt!

    Back to the mower deck. There is a rod that goes between the rear mounting bracket of the mower deck to the frame cross member. This is called an "anti-sway bar" and has nothing to do with handling of the tractor. What this does is keep the mower deck from moving too far to the left or right under the tractor. Problem is, if you bang into something too hard, like a fence post or a tree, the rod will bend and the hole in the frame bends too. Eventually the rod will fall out. Now the mower deck can move left-right and stress the mounting brackets on the deck. Guess what breaks next? Yes, that would be the welds between the mower deck and the rear mounting brackets.  The left side bracket on my mower deck tore right out of the mower deck and the deck is now at the local welding shop being patched together again - and reinforced! I intend to have them make me a heavier anti-sway rod too.

    Let's talk about traction now. Well gee, I wish I could but this machine doesn't have any! It loses traction if there's even light dew on the grass! Try to go up even a gentle hill and the tires will spin.  I've tried all different tire pressures to no avail. If I keep this tractor I will look for wheel weights and see if that helps. Maybe I need regular tractor tires and not Turf Savers. But be aware, cutting in the rain is not a good idea.  It would be great if this tractor had a locking rear end. As it is, it's like an old rear wheel drive car - lose traction and the wheel just spins while the other just sits there. Then you have to wriggle your butt back and forth to get it to move which aggravates the mower deck condition some-more. Gotta love it. lol!

    Finally all the little "nanny systems" are a constant annoyance; slide too much to the left or right on the seat and the seat switch cuts off the engine; Like a car, you can't start the engine unless your foot is pressing the brake pedal despite the fact that the hydro rear end won't move the tractor unless you're pushing the pedals which are on the other side of the tractor. So it's like double protection. Then there's the nifty no-backing-up-while-mowing protection. Unless you set the ignition key just so, if you go to back up with the mower running the engine will be cut off. Problem is, your knee will knock the key into the "safe" position and you won't know it until you try and back up. Gee, I never have to back up when I'm mowing, do you? LOL! Like I said, they're little annoyances but on a hot, sticky day with the sun roasting your brain, they tend to get to you. All they need now is a back-up warning beeper, alarm bells and flashing idiot lights...

    And that brings me to the seat. It's too far forward and offers NO support. I finally reversed the mounting bracket on my tractor and (easily) bent the stop out of the way to allow the seat to flip up fully. (There's nothing on this tractor that isn't easy to bend!) This change gave an additional 2" of leg room which helped a lot. It also helps with the knee kicking the key issue too.  Next I will be making some arm rests.

    Are there good points? Well...the engine runs like a champ! I keep a battery tender on the machine when not used, especially during the winter, and it always starts right up. No complaints here!  The hydro drive is pretty nice too. No shifting, clutching or anything like that. Just push the pedal and go.

    I think if you have one of those picture-book looking yards with nice, flat grading or an easy, gently rolling grade, minimal obstacles, no rocks or kid's toys to accidentally hit, (including balls) and you're no more than 5'-8" tall, this tractor would be just fine. It will run for hours on end and do a nice job mowing. Anything more than this and I'd look for something more heavy duty...like I'll be doing next season.

    Bottom Line - This machine is a paper tiger. It looks good but push it too hard and it will start bending parts and breaking down.



    did you find this review helpful?
    (Report a concern)
    Profile Avatar

    I hate this POS September 08, 2009
    By Neeeol of Seabeck, WA

    I made the mistake of buying one of these a few years ago.  Every year I have to get a new carb - $350 installed.  Why?  nothing wrong with the carb.  But they put some kind of a solenoid on it that corrodes out every year.  Can't get it without getting a new carb.

    The plow is pointless.  The thing doesn't have enough grip to push anything, even with wheel weights and chains.

    The mower deck has now decided to quit working all together.  I'll have to waste at least two days now taking it apart to see if I can make it work again.  I'm not even sure it's worth it. I have had to have this in for servicing more than my car - and it has 132,000 miles on it!  I should have gotten the Briggs & Stratton version.  I have no problem with my 10 year old mower with the Briggs, nor with my generator.

    Stay away from this POS.  It's more money - and trouble - than it's worth.

    did you find this review helpful?
    (Report a concern)
    See more reviews

    Sears Can Help

    You can be sure we'll offer you the best available options every step of the way.

    Sears Guarantees, Policies & Agreements
    Sears Price Match Plus Policy

    Sears Price Match Plus Policy We find the lowest price, and then we beat it - period! See details.

    Sears Satisfaction Guarantee & No Hassle Return Policy

    Satisfaction guaranteed or your money back. Restocking, cancellation or other restrictions may apply. Learn More

    Sears Protection Agreements

    If there's ever a problem with your product, a protection agreement can provide you with peace of mind. Find out how.

    Sears Expert Repair Services

    Not ready to replace? Repair. Sears can help you save money and time. Schedule Now!


    Related Products

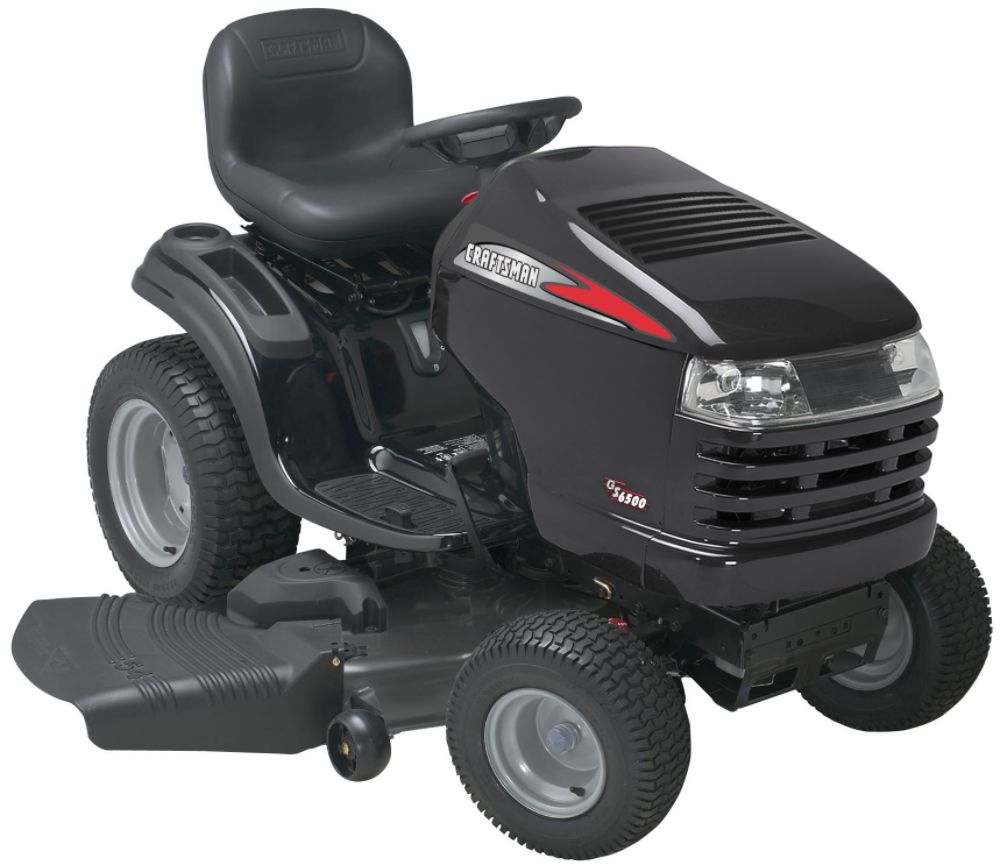

    Craftsman 26 hp 54 in. Deck Garden Tractor
    Powerful Garden Tractor powered by a Briggs & Stratton 26 hp Intek Twin cylinder engine with full pressure filtration. Larger ...
    Craftsman 26 hp 54 in. Deck Garden Tractor
    Powerful Garden Tractor powered by a Briggs & Stratton 26 hp Intek Twin cylinder engine with full pressure filtration. Larger oil and fuel filters for longer life. 6 speed transmission for easy handling. 54" 11 Ga. Deck with (4) adjustable gauge wheels....

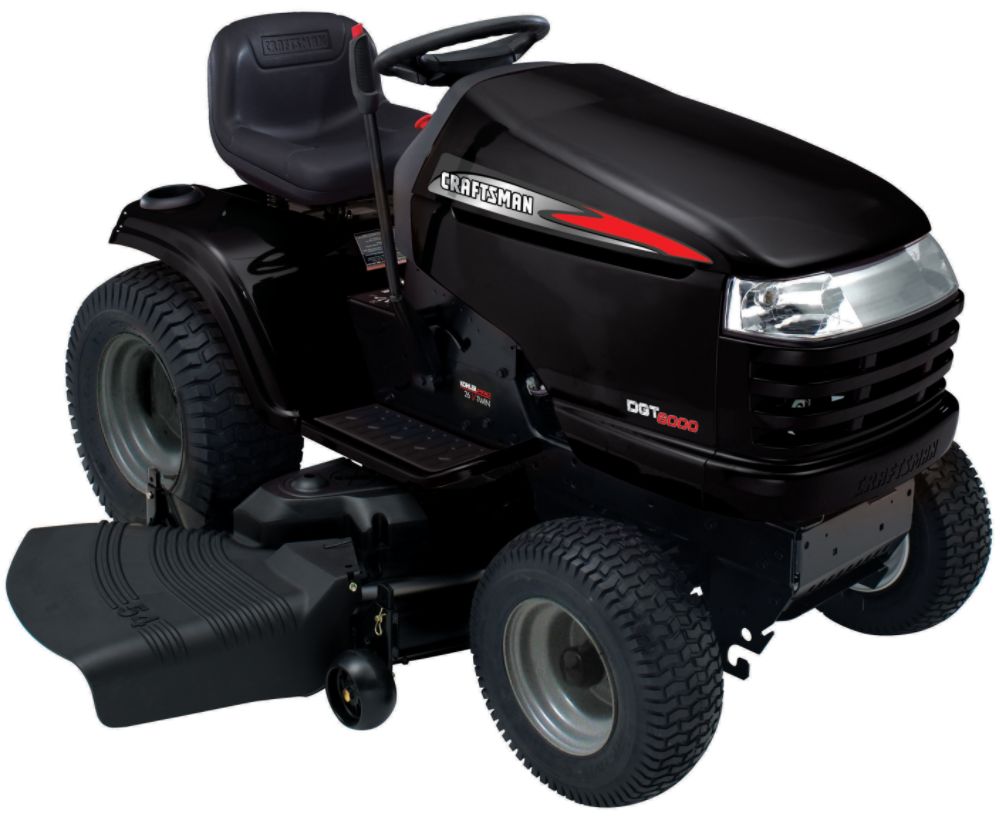

    Craftsman 26 hp 54 in. Deck Garden Tractor
    Kohler Pro 26 hp V-Twin engine with pressure lube, larger air, oil and fuel filters and hydraulic valve lifters. 54 ...
    Craftsman 26 hp 54 in. Deck Garden Tractor
    Kohler Pro 26 hp V-Twin engine with pressure lube, larger air, oil and fuel filters and hydraulic valve lifters. 54 in. Vented Deck system.Click here to see all tractor attachments. Read full description... Product Overview:Garden Tractor Type:Automatic, 54 in. Deck General Warranty:2...

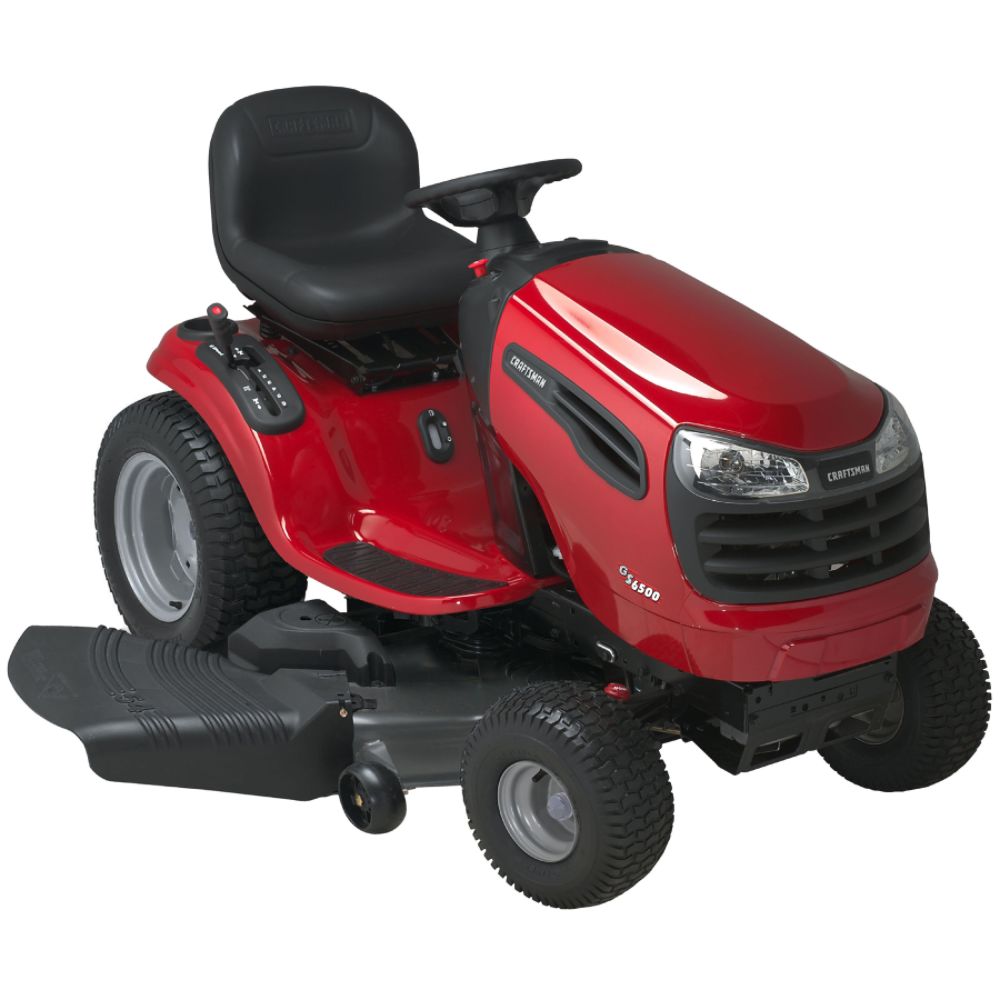

    Craftsman 26 hp 54 in. Deck Garden Tractor
